熱縮子彈頭公母端子

應用

HSBMT、HSBFT是由聚烯烴和熱熔膠復合生產而成的熱收縮套管,用于保護連接、防水防腐蝕,可以在粗糙的環境中加強固定和防震動,具有很好的絕緣保護電子連接器的功能。與常規的連接器相比,具有耐久性、易于安裝、安裝成本低的優勢。

特性

收縮率3:1

材料優異的延伸性能,抗機械損害

透明度佳,提高更好的抗拉力

高彈性能,管材不易變形

操作溫度范圍

操作溫度: -55℃~125℃

開始收縮溫度: 80℃

最低完全收縮溫度: 130℃

性能參數

Test Item

Characteristics

Test condition

Unaged

Tensile strength

Min. 18MPa

Room temp.

Elongation

Min. 200%

Aged

Tensile strength

Min. 11.5MPa

150℃/7 days

Elongation

Min. 100%

Voltage withstand and breakdown Voltage(Unaged)

Withstand 2.5 KV for 1minute and breakdown

Room temp.

Voltage withstand and breakdown Voltage(Aged)

Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage

150℃/7 days

Copper corrosion

No corrosion of bare copper

150℃/7 days

Copper stability

No sign of degradation Min.Elongation 100%

150℃/7 days

Cold bend

No crack

-40℃/4 hrs

Maximum secant modulus(2%)

250 MPa

-

Volume resistivity

Min.1014Ω-cm

-

Heat shock

No crack

200℃/4 hrs

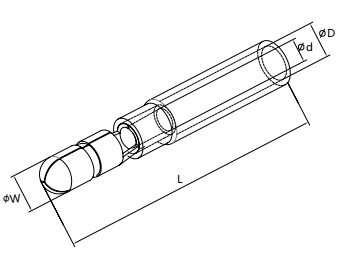

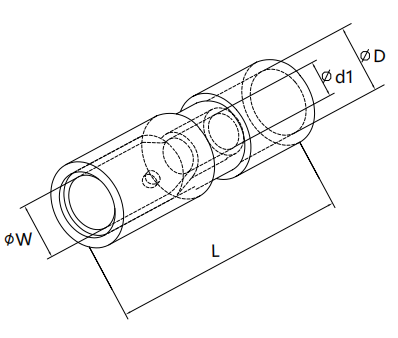

產品規格

Part. No

Wire Range

Stud Size(mm)

(mm)

Length(mm)

Insulator

Color

A.W.G

 mm2

Size

d

D

W

L

MPD 1-156

22-18

0.5-1.0

0.4

1.7

4.7

4.0

31

PE

Red

MPD 2-156

16-14

1.5-2.5

0.4

2.3

5.7

4.0

34

PE

Blue

MPD 5-156

12-10

4.0-6.0

0.4

3.5

6.7

5.0

34

PE

Yellow

Part. No

Wire Range

Stud Size(mm)

(mm)

Length(mm)

Insulator

Color

A.W.G

 mm2

Size

d

D

W

L

FRD1-156

22-18

0.5-1.0

0.4

1.7

4.7

4.0

25

PE

Red

FRD2-156

16-14

1.5-2.5

0.4

2.3

5.7

4.0

26

PE

Blue

FRD5-195

12-10

4.0-6.0

0.4

3.4

6.7

5.0

29

PE

Yellow
